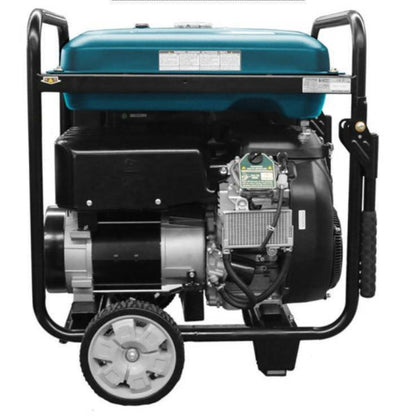

K&S emergency power unit 230V 400V gasoline electricity generator emergency generator 11.5 kW ATS
Availability for pickups could not be loaded
Beschreibung

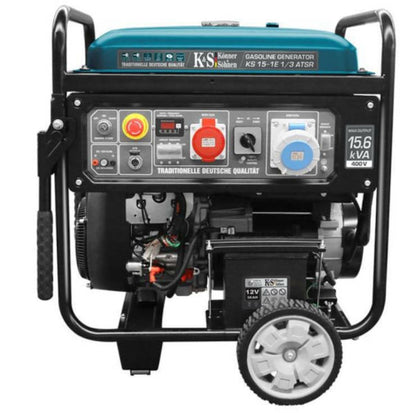

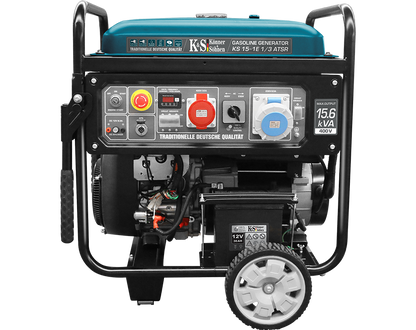

This generator is suitable for connecting an ATS unit and has a unique VTS phase switching system that enables the use of the generator both in the single-phase mode (230 V) and in three-phase mode (400 V) with minimal loss of performance. A user-friendly ergonomic control panel with an emergency stop button on the engine and a multifunctional LED display enables the generator operation to be monitored: voltage, frequency, operating hours and oil level. This model is equipped with sockets for the complete acceptance of the current generated by the generator. These sockets are equipped with fuses and provided with suitable plugs. The large fuel container with a volume of 55 l ensures a long and continuous operation.
ATTENTION! The goods are sold without motor oil. The oil must be introduced before the first start!- Technical specifications:
| Tension, V | 230/400 |
| Sight output/nominal output (230V), KW | 11.5/11.0 |
| Sight output/nominal output (400V), KVA | 15.6/15.0 |
| frequency | 50 Hz |
| Electricity, а (max) | 48/22 |
| Sockets | 1 × 32a (400V), 1 × 63a (230V) |
| Volume of the patient, L | 55 |
| LED display | Tension in volts, frequency, operating hour counters, engine oil level |
| Noise level LPA (7m)/LWA, DB | 72/97 |
| Yield 12V, а | + |
| Model of the engine | KS 780 |
| Type of the engine | Petrol 2-cylinder, 4-stroke with air cooling |
| Engine power, PS/KW | 22.0/16.18 |
| Motor oil filling quantity, L | 1.5 |
| Displacement, cm3 | 750 |
| Tension controller | Intelligent AVR system |
| Starter | Electrical |
| Performance, COS φ | 1 (230V) /0.8 (400V) |
| Dimensions Net (L*B*H), mm | 797×705×805 |
| Dimensions gross (l*b*h), mm | 807×715×905 |
| Net weight, kg | 155 |
| Gross weight, kg | 170 |
| Battery, Ah | 36 |
| Protection class | IP23m |
| Barcode | 4260405363445 |
| Produced in VRC |
Notstromer KS15-1E1/3ATSR
